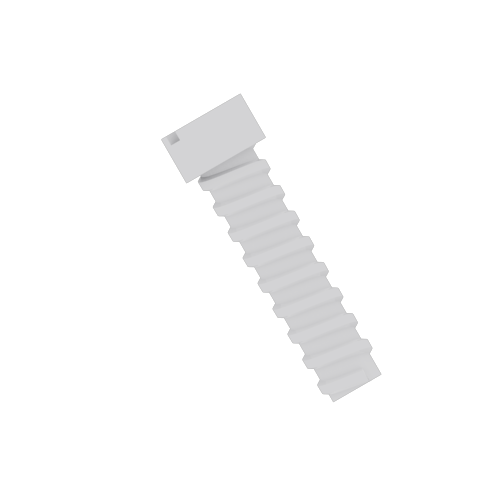

Modeling the bolt was the most complicated object to create. I used a helix as a starting point, I extruded the edges and patched the holes. I then used the bevel tool to create the threads.

Name Plate

The nameplate was made by creating a font shape and merging it with a rectangle via boolean modifier.

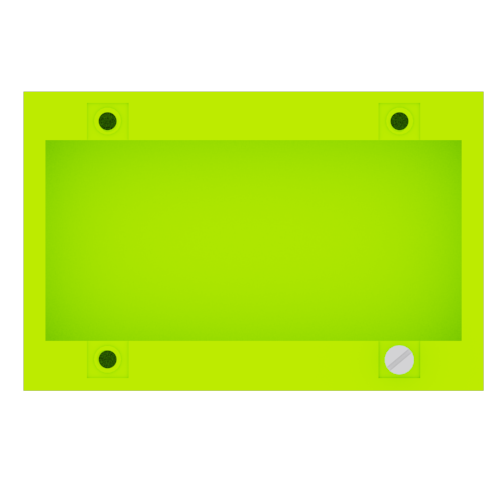

The box was made by extruding a rectangle and using booleans to create the hole for the screw

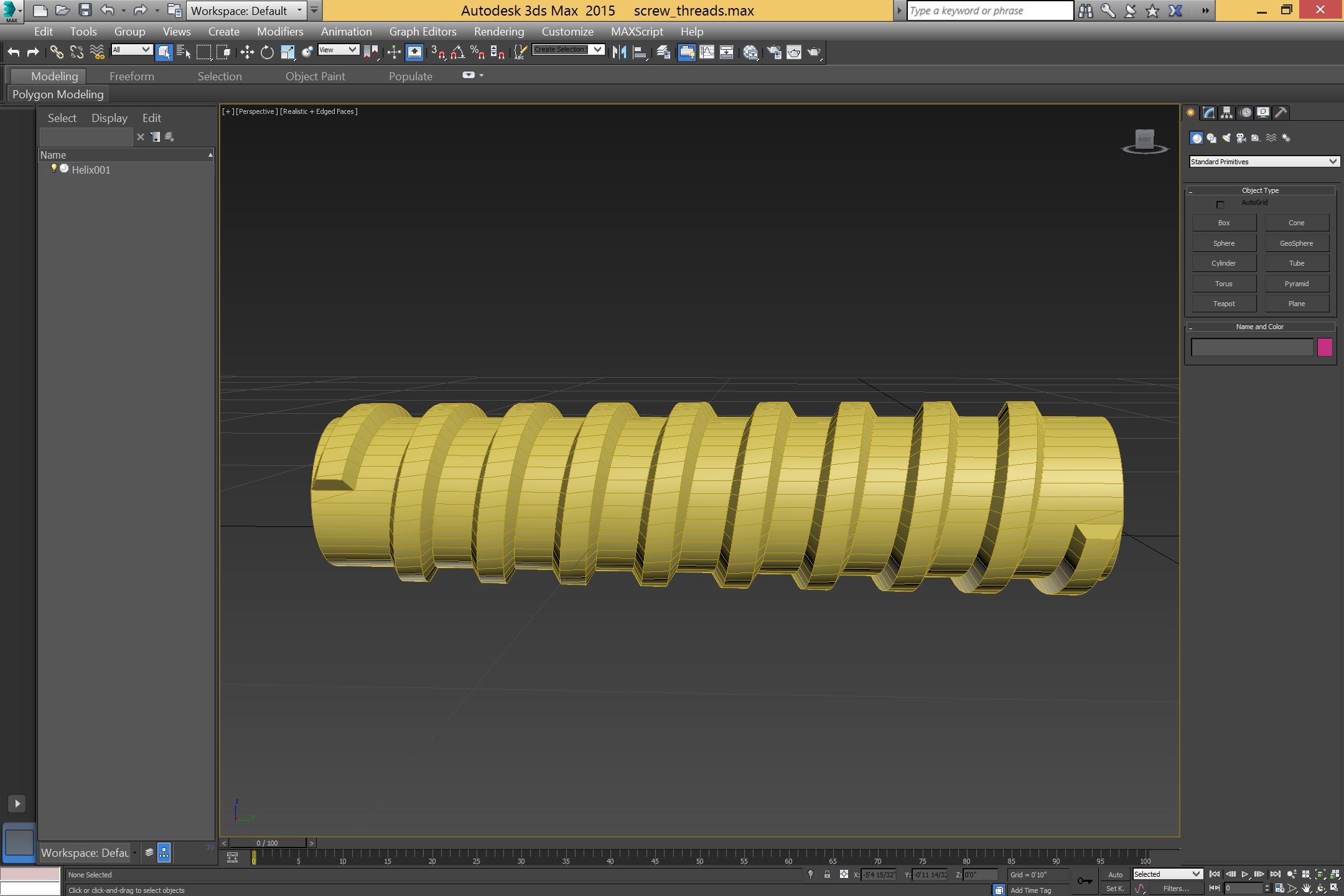

Work in progress. this was the object I created from a helix shape to form the basis of the screw.

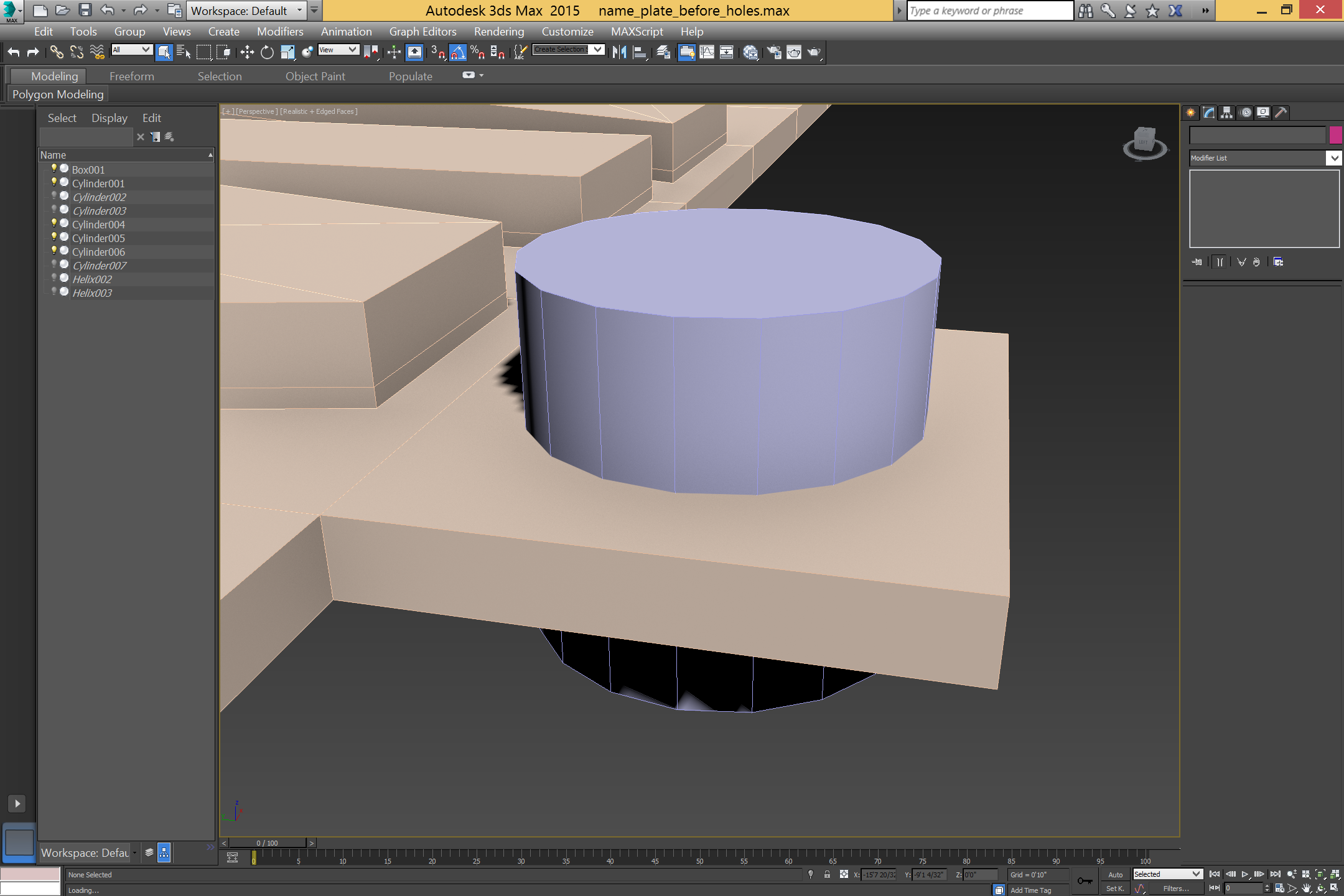

After this I created a cylinder for the head of the screw and used boolean operations to combine the shapes.

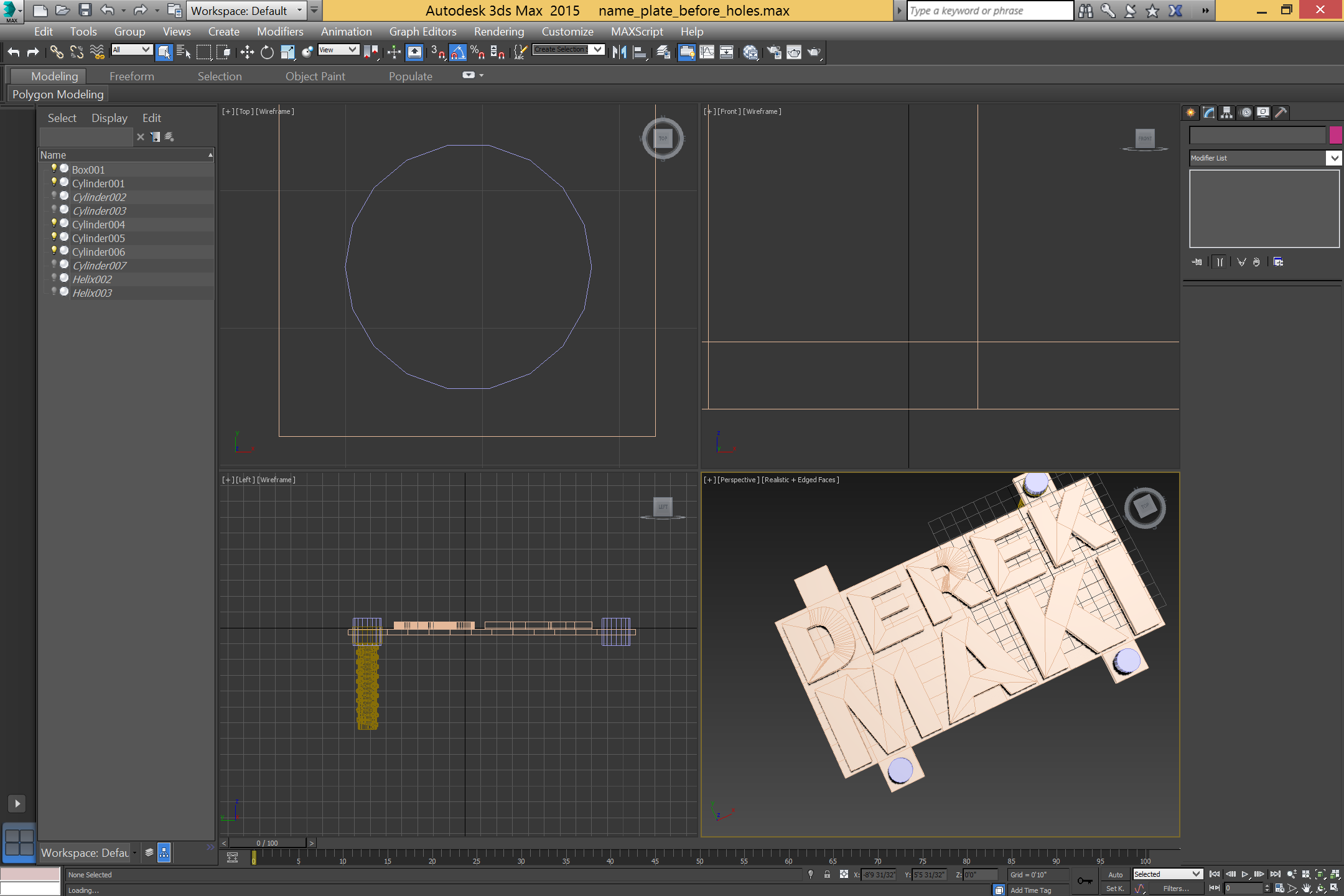

This is the name plate before using cylinders to create the holes that hold it on to the box.

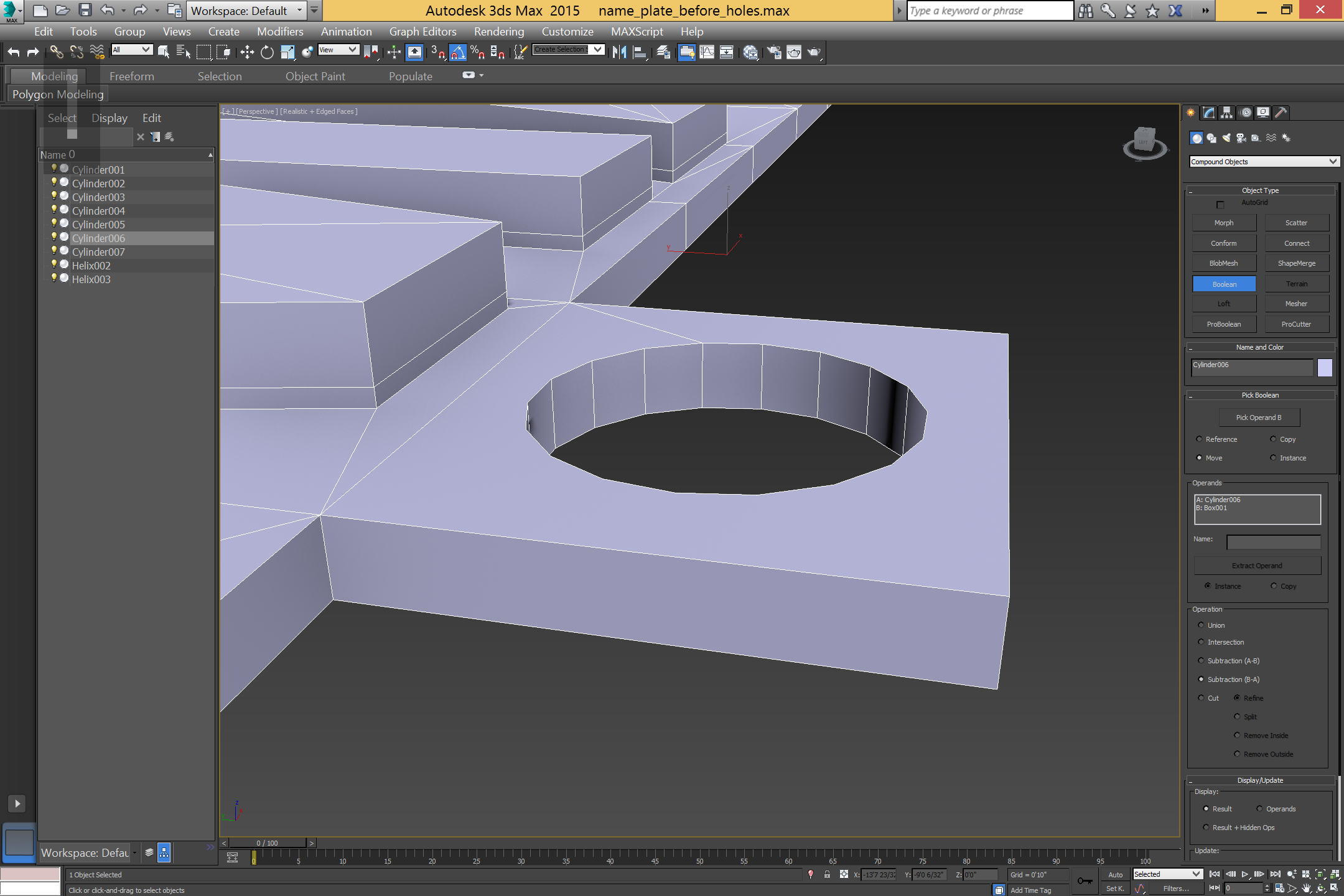

Before boolean subtraction.

After boolean subtraction.
