5 Bend Staircase: Bottom Port Routings

Routings for the Bottom port of V to any port of W

Routings from the Bottom Port below the staircase can potentially enter the West, East, North or Bottom Ports of W.

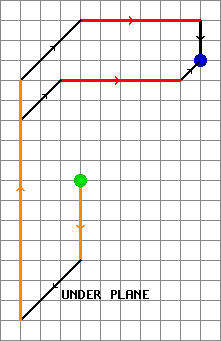

Routings from the Bottom Port to the South or Top Ports of W drop down to the East Underplane of V, route out to the Bottom Climb and then climb to W's plane level to finish routing.

For further information see the underplane routings.
